Pinecone | Redwood
35 000,00 ₾

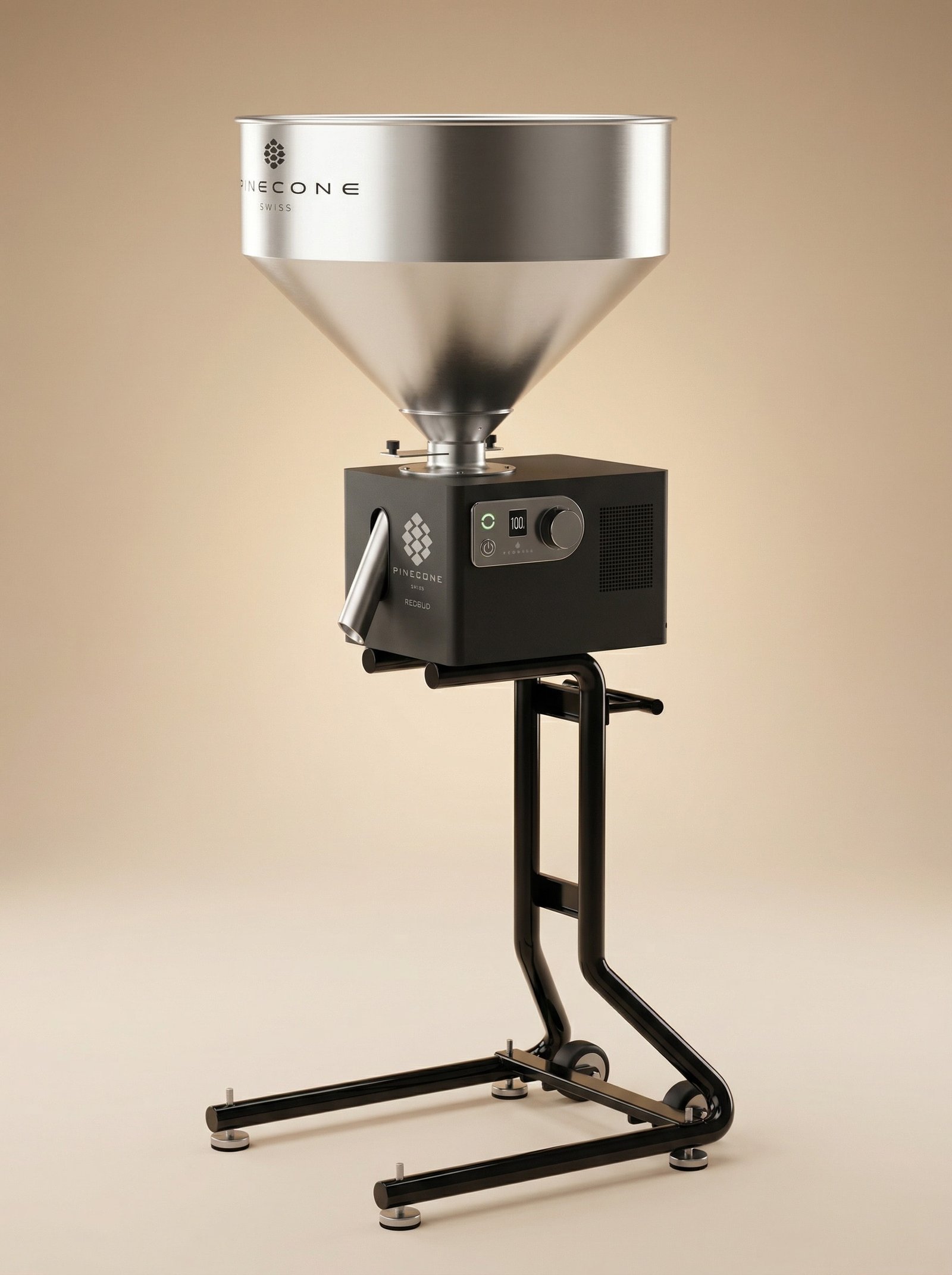

The Redwood is engineered for continuous duty production in packaging and capsule making environments, while remaining equally capable as a stand-alone grinder. Built on our proven 120 mm flat-disc platform, it delivers up to 3 kg/min (≈6.6 lb/min) with stable particle uniformity and operates from a standard single phase outlet – no three phase supply required.
For line integration, Redwood provides full RS485 remote control of start/stop, grind-size setpoint, and access to live statistics and alarms, enabling seamless orchestration with upstream and downstream equipment. Digital micrometric “by-wire” calibration ensures repeatable, micron-level precision across a wide range of profiles, while a 30 kg hopper supports uninterrupted runs for bagging, wholesale pre-grind, and retail packaging applications.
Thermal stability is designed in at the core. Redwood maintains minimal heat increase at the grind through a dual-fan architecture—one dedicated to the motor/driver and one to the grinding module—paired with a high-efficiency BLDC motor that avoids heat build-up. The Modular Grinding House simplifies cleaning and service, maximizing uptime and ensuring consistent performance in demanding semi-industrial settings.
In stock
Description
-
Target application: Packaging & capsule-production lines, Roasteries & co-packers, High-volume commercial operations
-
Disc diameter: 120mm
-
Disc lifetime*: 20-25 tons
-
Motor technology: Brushless direct (BLDC); standard single-phase power supply
-
Grinding output*: 180 kg / 400 lbs per hour
-
Grind size range*: Turkish fine to cold brew
-
Control options: Digital automatic, RS485 line integrated
-
Hopper capacity: 30 kg (Additional accessory: 10 kg)
-
Weight: 50 kg (net)
-
Dimensions (W x H x D) Core Grinder: 355 x 370 x 660mm
-
Dimensions (W x H x D) Bean Hopper: 660 x 520 x 660mm
-
Dimensions (W x H x D) Grinder & Hopper & Frame: 560 x 1600 x 780mm
-
Standard colors: black (Others on request)
-
MSRP (CHF) Core Grinder: 5,300
